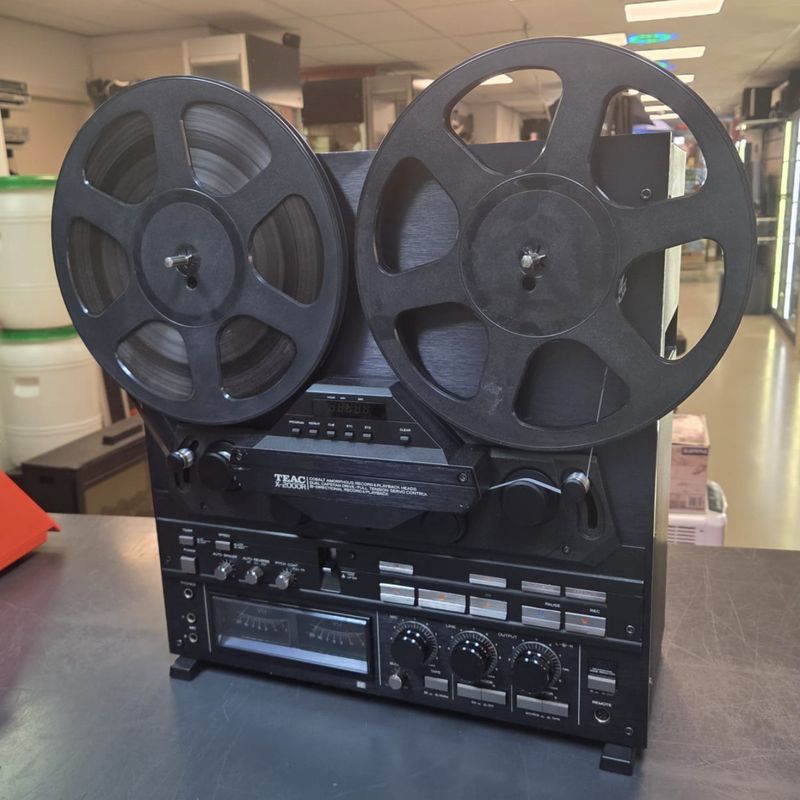

TEAC X-2000R Stereo bandrecorder, auto-reverse

SKU: 76-843156

Deze recorder is door ons getest en hij werkt op alle punten prima, behalve bij OPNEMEN in REVERSE richting is het rechter kanaal luider dan het linker.

General

Manufacturer: Teac

Model: X-2000 R

Type: Auto-Reverse Reel Tape

Years of manufacture: 1985 - 1989

Made in: Japan

Color: Black

Remote control: yes, cable remote control RC-204 optional

Dimensions: 432 x 456 x 268 mm (WxHxD)

Weight: 21 kg

Original price approx.: 1'600 US-$ (1987), 4'000 DM

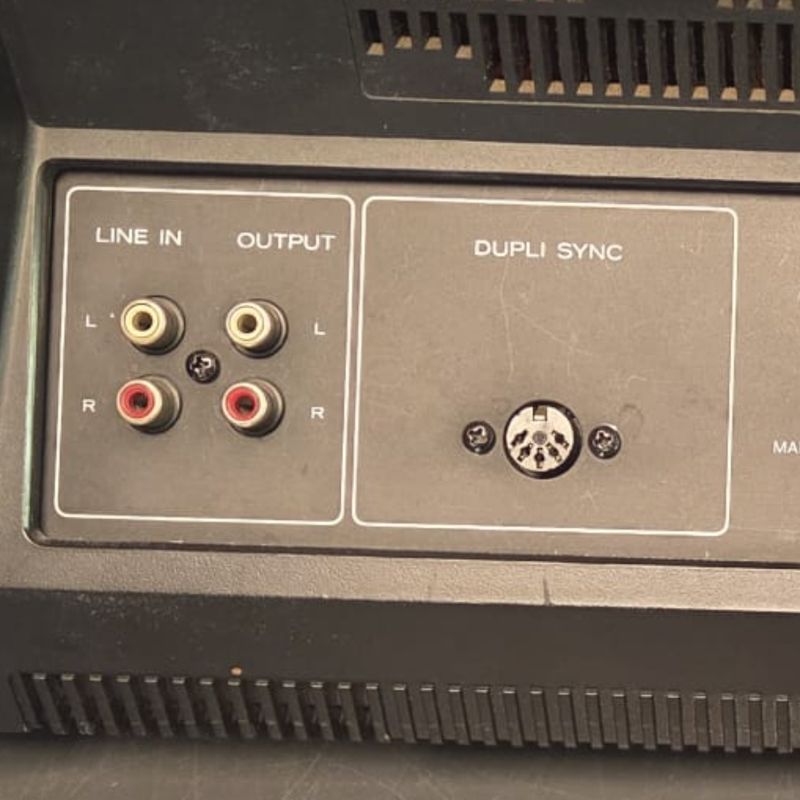

Connections

Inputs: Line 60 mV, 50 kOhm Microphone: 0.25 mV/-72 dB (200 Ohm)

Outputs: Line 0.45 V for load impedance of 10 kOhm or more Headphone: 100 mW max (8 ohms)

Specifications

Track system: 4 track 2-channel stereo or mono.

Conductor system:

Forward Erase x1

Forward Record x1

Forward Playback x1

Reverse Erase x1

Reverse Record x1

Reverse Playback x1

Reel Size: 10-1/2" and 7"

Tape Speed: 7-1/2 and 3-3/4 ips ips (± 0.5%)

Motors

FG DC Servo Motor x1 DC Slotless Motors x2

Wow and Flutter (WRMS)

0.03% at 7-1/2 ips

0.04% at 3-3/4 ips

Frequency Response (Total)

30 to 40 000 Hz (± 3 dB, 40 - 33 000 Hz -20 VU) at 7-1/2 ips

30 to 24 000 Hz (± 3 dB, 40 - 22 000 Hz-30 VU) at 3-3/4 ips

Signal to Noise Ratio (Total) 65dB (3% TH Level D, weighted) dbx-Out

100 dB (3% THD Level, weighted) Im dbx

Dynamic Range: 115 dB (dbx-IN, 1 000 Hz, peak level)

Harmonic Distortion (Total): 0.8% at 1 000 Hz, 185 nWb / m level

Stereo Channel Separation: 50 dB at 1 000 Hz

Fast Wind: Approx. 100 sec. for 1,800 meters

Special features:

EE-Band capable

Real time counter

Dual caterpillar drive

Logic control

Remote control possibility of other TEAC tape machines for dubbing

Autospacer for recording and dubbing

Timer operation

dbx I Decilinear Noise Reduction System
